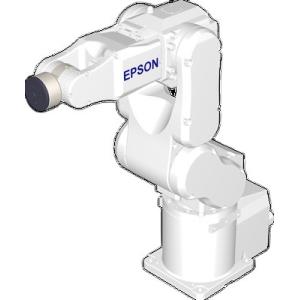

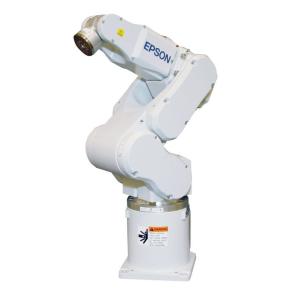

Collaborative Robot C3 Used EPSON Robot Arm Lightweight 6 Axis CNC Robot Arm

Ask Lasest Price
Brand Name :	Epson
Certification :	CE
Supply Ability :	99 Piece/Pieces per Month
Price :	$30,000.00/sets 1-9 sets
Model Number :	C3

Add to Cart

Product Details
Company Profile

Collaborative Robot C3 Used EPSON Robot Arm Lightweight 6 Axis CNC Robot Arm

Collaborative robot C3 used robotic arm lightweight 6 axis cnc robot arm

Specifications:

Construction: Vertical articulated (six degrees of freedom)
Max. reach of P point (rotation centers of joints #4, #5, #6): 600 mm
Cycle time (1-kg payload): under 0.3 sec.
Maximum joint ranges
Joint #1 (rotates the robot): ±170 deg (±180 deg without mechanical stop)
Joint #2 (extends, retracts the lower arm): -160 deg to +65 deg
Joint #3 (extends the vertical reach): -225 deg to -51 deg
Joint #4 (wrist roll): ±200 deg
Joint #5 (wrist pitch & yaw): ±135 deg
Joint #6 (wrist twist): ±360 deg
Maximum joint speeds
Joint #1: 450 deg/s, Joint #2: 450 deg/s, Joint #3: 514 deg/s,
Joint #4: 553 deg/s, Joint #5: 553 deg/s, Joint #6: 720 deg/s
Allowable moment of inertia (GD2/4)
Joint #4: 0.15 kg·m2, Joint #5: 0.15 kg·m2, Joint #6: 0.1 kg·m2
Repeatability: ±0.02 mm
Payload: 1 kg (rated); 3 kg (max.); 5 kg (with arm downward positioning)
Weight: 26 kg

The C3 series was engineered for precision assembly of small parts. These robots were Epson's first 6-axis models to be equipped with Residual Vibration Control, Epson technology that enables Epson robots to move at high speeds with minimal vibration. These robots proved very effective in increasing the efficiency and productivity of users' floor space.

Speed and precision
- Offered excellent production efficiency with a good balance between best-in-class speed and precision1.
- Standard cycle times in the 0.3-second range2, with repeatability of +/-0.02 mm
Slim body
- High space efficiency
- The manipulator is only 1/44th the size of its working envelope.
- An elbow area (joint #3) that is only half the size of that of the previous model, the PS3-AS003.
- A 42% narrower arm width than on previous models.
- Less interference with peripherals, walls, and ceiling permits more compact installation
Dexterous wrist
- Compact wrist (joint #5) with wide working envelope4 enables smooth movement and the ability to work from many angles
- Minimal interference with surroundings improves flexibility in hand design
Installation flexibility
- Can be mounted on a ceiling, wall, floor, tabletop, or at a skewed angle
- Provides layout freedom and high space efficiency

1 Best at the time the robots were released
2 With a 1-kg payload
3 The radius, from the center of the joint to the edge of the protruding part (figure 1)
4 See figures 2 & 3

Model		ProSix C3
Robot type		6-axis robot
Payload	nominal / max. (kg)	1 / 3 5 kg with special conditions
Horizontal arm length	(mm)	600
Repeatability	(mm)	± 0.02
Motion ranges	J1	± 170˚
	J2	+65˚ / -160˚
	J3	+225˚ / -51˚
	J4	± 200˚
	J5	± 135˚
	J6	± 360˚
Max. speed	J1	450 ˚/s
	J2	450 ˚/s
	J3	514 ˚/s
	J4	720 ˚/s
	J5	553 ˚/s
	J6	553 ˚/s
Inertia	J4 (kg/m2)	0,15
	J5 (kg/m2)	0,15
	J6 (kg/m2)	0,10
Wiring	electrical	D-Sub: 9-pin
Wiring	pneumatic	2 x ø 4 mm / 2 x ø 6 mm
Mounting		Floor mount Wall mount Ceiling mount Inclined (angle) Sunk
Environment		standard clean room (ISO3) and ESD
Weight	(kg)	27
Controller	type	RC180 micro controller
Controller	power/signal cable (m)	standard: 3 m option: 5m, 10m, 20m
Standard		Machinery Directive: EN 60204-1 EMC Directive: EN 55011 EMC Directive: EN 60950 RoHS Directive: 2002/92/EC ANSI/RIA R15.06-1999

Collaborative Robot C3 Used EPSON Robot Arm Lightweight 6 Axis CNC Robot Arm

Specification

item	value
Applicable Industries	Other
After Warranty Service	Video technical support, Online support, Field maintenance and repair service
Local Service Location	None
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	PLC
Condition	New
Place of Origin	China
	Shanghai
Brand Name	Epson
Weight	27kg
Power	380V
Certification	CE
Warranty	1 Year
	Online support
Product name	Collaborative robot C3 robotic arm lightweight 6 axis cnc robot arm
Repeat positioning accuracy:	+ / - 0.020mm
Payload	1kg/3kg
Vertical arm length (mounting surface)	885mm
Vertical arm length (carpal Center)	820mm
Horizontal arm length (carpal Center)	600mm
Horizontal arm length (mounting surface)	665mm
Installation type	Tabletop, Ceiling , Angle
Available controllers	RC180 micro power driven
Cleanliness and ESD standard	ISO 3 clean & ESD

Packing & Delivery

Collaborative robot C3 robotic arm lightweight 6 axis cnc robot arm packing with fumigation wooden frame
