| Brand Name : | Yaskawa |
| Supply Ability : | 5 Piece/Pieces per Month |
| Price : | negotiable |
The MOTOMAN MPL80II is a 5-axis Palletizing Robot with a payload of 80 kg and a reach of 2,061 mm. This model is derived from a 6-axis-Handling robot and tuned for High Speed and Accelerations.
Based on the reliable Sigma5 Servo Technology, this robot is easy to install and deploy.
| Axes 5 |
| Payload: 80 KG (176.37 lbs) |
| Reach: 2061 MM (81.14 in) |
| Repeatability: ±0.07mm (.002 in) |
| Robot Mass: 550 KG (1,212 lbs) |
| Structure: Articulated |
| Robot Motion Speed |
| S-Axis 170 °/s (2.96 rad/s) |
| L-Axis 170 °/s (2.96 rad/s) |
| U-Axis 170 °/s (2.96 rad/s) |
| B-Axis 170 °/s (2.96 rad/s) |
| T-Axis 350 °/s (6.10 rad/s) |
| Robot Motion Range |
| S-Axis - ±180° |
| L-Axis - 135°-90° |
| U-Axis - 35°-160° |
| B-Axis - ±15° |
| T-Axis - ±360° |
Key benefits:
| Product Name | 5 axis robot arm YASKAWA MPL80 II pick and place machine 80kg Payload 2061mm Arm industrial robot |
| Model | MPL80 II |
| Application | Handling & General Application |
| Maximum reach | 2061mm |
| Maximum payload | 80kg |
| Pose repeatability (ISO 9283) | ± 0.07mm |
| Number of axes | 5 |

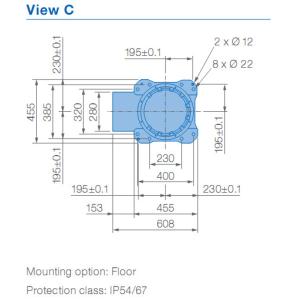

| Mounting position | Floor |
| Weight | 550kg |
| Protection rating | IP67 |
| Controller | DX200 |
| Motion range | |
| S | 180° to -180° |
| L | 135° to -90° |
| U | 35° tp -160° |
| R | |
| B | 15° to -15° |
| T | 360° to -360° |
MPL80 II Introduction:
The versatile and powerful 5-axis MOTOMAN MPL80 II robot provides high performance in case palletising, bag palletising, order picking and many further logistical tasks for end-of-line or distribution center automation.
Its extensive vertical reach of 3291 mm combined with 2061 mm horizontal reach enables high palletising loads. Empty tubes for internally routed airlines and cables from base to end-of-arm tool maximize system reliability.
The MPL80 II is driven by the high-perfomance DX200 controller which is available with the optional Category 3 Functional Safety Unit (FSU), providing a variety of new safety functions.
KEY BENEFITS
• Flexible and powerful
• High Payload: 80 kg
• Maximum reliability, empty tubes for internally routed airlines
and cables

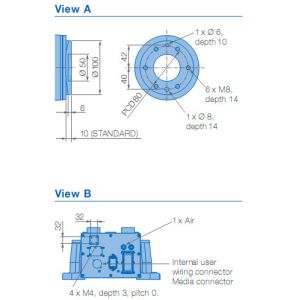

• Internally routed fieldbus connection (optional) to T-axis/tool
• Enhanced Safety Functions for DX200 Functional Safety Controller
(FSU)
Applications:
Handling & General Application
|
|
