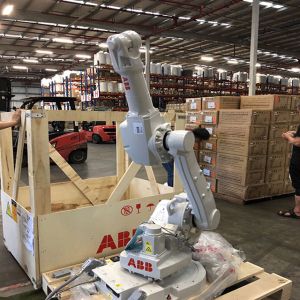

Used ABB industrial robot material handling ABB IRB 2600ID 6 axis robotic humanoid machine
Main Specifications
Model:IRB 2600ID-15/1.85
Maximum reach:1850 mm
Maximum payload:15 kg
Pose repeatabilit: ± 0.04 mm
Number of axis :6
Weight:272 kg
Protection rating:IP67
Key Features & Benefits:
A new compact design that offers a high payload capacity of up to 20kg and a working range optimized for material handling, machine tending and arc welding. It also offers the best accuracy and acceleration in its class, securing high output and low scrap rates for improved productivity.
Flexible mounting possibilities including floor, tilted, wall, inverted or shelf mounted, which help to reduce floor space and increase access to the equipment being served. The wall mounted version has outstanding performance. These features enable more creative cell designs and enables floor space to be optimized in a wide variety of industrial segments and applications.
Main applications:
Load (kg): 8
Reach (m): 2.00
Protection available: IP67 (base, lower arm and wrist) IP54 (axis
4)
Mounting: Floor, Wall, Tilted, Inverted
Pose repeatability (RP) (mm): 0.02
| Production Name | 6 Axis robot arm of ABB IRB 2600 Material Handling robot arm |
| Model | IRB 2600ID-15/1.85 |
| Application | pick and place robot |
| Maximum reach | 1850 mm |
| Maximum payload | 15 kg |
| Pose repeatability (ISO 9283) | ± 0.026 mm |
| Number of axis | 6 |
| Mounting position | Floor, wall, shelf, tilted, inverted |
| Footprint | 676mm x511mm |
| Weight | 273 kg |
| Protection rating | Standard IP67 for base and lower arm IP54 for upper arm |
| Controller | IRC5 Single cabinet |
| Motion range | |
| A1 | 180° to -180° |
| A2 | 155° to -95° |
| A3 | 75° to -180° |
| A4 | +175° to -175°° |
| A5 | 120° to -120° |
| A6 | +400° to -400° |
