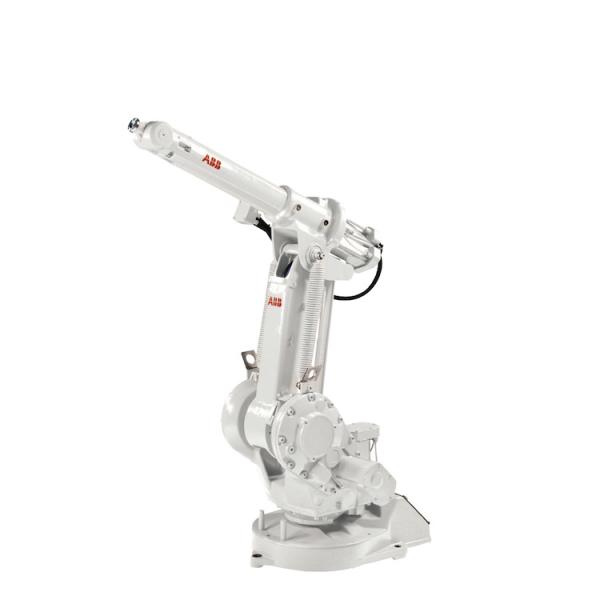

    Used ABB IRB 1410 6 Axis Robotic Arm As Robot For Welding And Material Manipulator Handling With 5kg Payload

    Ask Lasest Price
    Brand Name : ABB
    Certification : CE/ROHS
    Supply Ability : 5 Piece/Pieces per Month
    Price : $22,735.00/sets 1-9 sets
    Model Number : IRB 1410
    • Product Details
    • Company Profile

    Used ABB IRB 1410 6 Axis Robotic Arm As Robot For Welding And Material Manipulator Handling With 5kg Payload

    Used ABB IRB 1410 6 Axis Robotic Arm As Robot For Welding And Material Manipulator Handling With 5kg Payload

    Axes 6
    Payload: 6 KG (13.22 lbs)
    Reach: 1611 MM (63.42 in)
    Repeatability: ±0.1mm (.0039 in)
    Robot Mass: 235 KG (518 lbs)
    Structure: Articulated
    Robot Motion Speed
    A1 - 156 °/s (2.72 rad/s)
    A2 - 156 °/s (2.72 rad/s)
    A3 - 156 °/s (2.72 rad/s)
    A4 - 343 °/s (5.99 rad/s)
    A5 - 365 °/s (6.37 rad/s)
    A6 - 662 °/s (11.55 rad/s)
    Robot Motion Range
    A1 - ±114°
    A2 - -155/35°
    A3 - -130/154°
    A4 - ±350°
    A5 - ±130°
    A6 - ±350°

    The ABB IRB 1410 provides fast and reliable work cycles that boost productivity. Ideal for arc welding application, this robot delivers plenty of performance and a high ROI. The ABB 1410 robot features the ability to adjust process speed and position to help achieve optimum manufacturing accuracy with little or no rejects.

    The ABB IRB 1410 is known for its stiff and robust construction. This translates into low noise levels and long intervals between routine maintenance and long service life. The large working area and long reach are complimented by the compact design and slim wrist. This allows high performance and operation even in difficult and restricted locations.

    If you are looking to cut costs even further, then consider a used ABB IRB 1410 robot. The used IRB 1410 robot has undergone an intense refurbishment process, bringing it back to mint condition, and includes the RobotWorx Value Package.

    Whether you purchase a new or used ABB IRB 1410, it will provide a reliable, strong, accurate, and fast arc welding ABB robot. The IRB 1410 can use either a IRC5, S4C, or S4Cplus controller.


    More products:


    KUKA robot


    1: KR 6 R1820 6KG 6axis welding robot


    2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot


    3: KR 10 R1420 6 aixs 10kg welding robot


    4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot


    ABB robot


    1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot


    2: IRB 1520ID 6 axis 5kg payload for welding


    3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing


    Collaborative robot


    1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad


    2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload




    Used ABB IRB 1410 6 Axis Robotic Arm As Robot For Welding And Material Manipulator Handling With 5kg Payload
    Used ABB IRB 1410 6 Axis Robotic Arm As Robot For Welding And Material Manipulator Handling With 5kg Payload
    Used ABB IRB 1410 6 Axis Robotic Arm As Robot For Welding And Material Manipulator Handling With 5kg Payload
    Specification
    item
    value
    Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
    After Warranty Service
    Video technical support, Online support, Field maintenance and repair service
    Local Service Location
    Russia, Spain, Japan, Sri Lanka, Bangladesh
    Showroom Location
    Viet Nam, Saudi Arabia, Russia, South Africa
    Video outgoing-inspection
    Provided
    Machinery Test Report
    Provided
    Marketing Type
    New Product 2020
    Warranty of core components
    1 Year
    Core Components
    PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
    Product Name
    ABB IRB 1410 6 Axis Robotic Arm as Robot for Welding and Material Manipulator Handling with 5kg Payload Industrial Robot
    Place of Origin
    China
    Shanghai
    Brand Name
    ABB
    Weight
    225kg
    Dimension(L*W*H)
    620*450*1793
    Power
    4kw
    Certification
    CE/ROHS
    Warranty
    1 Year
    Online support
    Product name
    ABB IRB1410-5/1.44
    Application
    Arc Welding/Material Handling/Machine Tending
    Payload
    5Kg
    Reach
    1440mm
    Number of axes
    6
    Material
    Aluminium Alloy
    Protection
    Std:IP67
    Mounting
    Floor, inverted
    Position repeatability
    0.10mm
    Controller
    IRC5 Single Cabinet/ IRC5 PMC Panel Mounted Controller
    ONE ABB IRB 1410 6 Axis Robotic Arm as Robot for Welding and Material Manipulator Handling with 5kg Payload Industrial Robot packing with fumigation wooden frame, Total WG:1700KG
    Production Name
    Industry Robot
    Power supply
    20 ~ 25V
    Protection rating
    IP54
    Weight
    1.25kg

    FAQ

    Q.How Long will You Need before Delivery? A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
    Q.What is Your Payment Term?
    A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
    Q:What is Trade Assurance? A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
    Q:Does Trade Assurance Charge Fees? A:No.Trade Assurance is free for both buyers andsuppliers.
    Q:What Kind of Trade Terms Can You Do?
    A:EX-WORKS,FOB,CFR,CIF,etc.
